Item :	16-SP YD819-MI

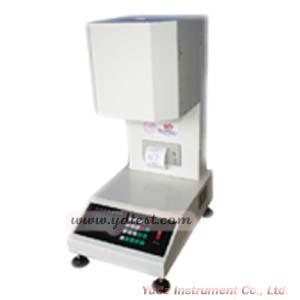

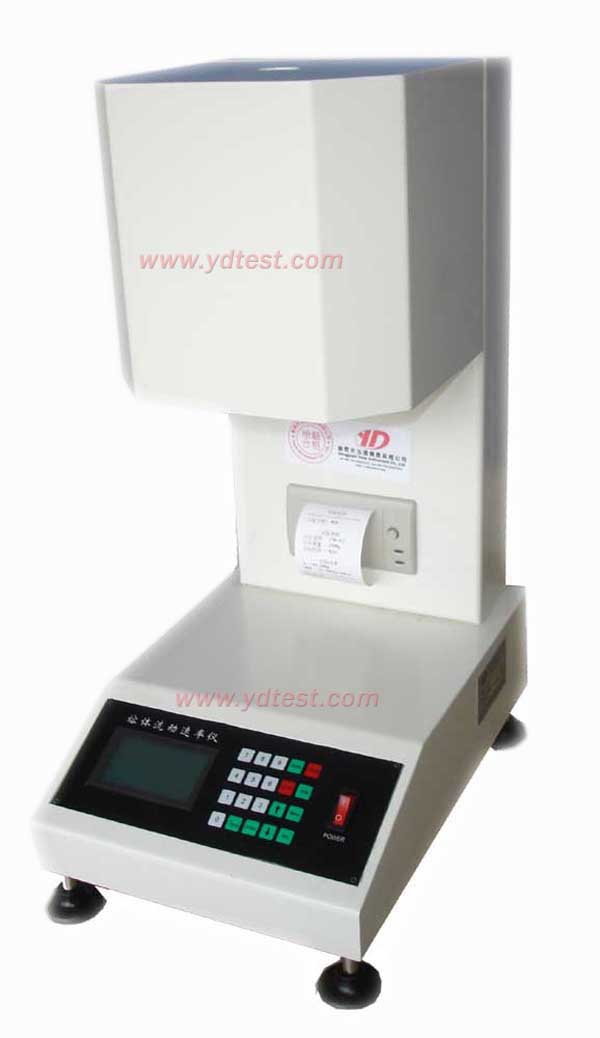

Name :	YD819-MI MI Melt Flow Indexer
Price :	$5,090.91/set (1 set)
	Your Quantity: x
Brand :	CHINA Yuda
Spec. :	Room temp. ~400 °C(accuracy ± 0.1°C)
Summary :	Measure the flow rate of extrusion of molten thermoplastic through a die under specified temperature and load. ASTM-D1238 ASTM-D3364 ISO-1133 JIS-K7210 GB/T 3682
Views :	6213 Date : 2012-7-4

Description :

100 % Recommended

Measure the flow rate of extrusion of molten thermoplastic through a die under specified temperature and load.

ASTM-D1238 ASTM-D3364 ISO-1133 JIS-K7210 GB/T 3682

Specification

1、extrusion

export diameter：Φ2.095±0.005mm

export length：8.000±0.025mm

load diameter：Φ9.550±0.025mm

load length：152± 0.1mm

plunger diameter：9.475±0.015mm

plunger length：6.350±0.100mm

2、standard load (8 grade)DIV>

3、temperature range：Room temp. ~400 °C (450°C)

4、temperatuer accuracy：±0.5°C

5、division value ：0.1°C
