Quarter and back height gauge
The height of the top-line of a shoe at the back and at the quarters affect fit and comfort. If the back height is too low heel
slip may occur during walking. If the quarters, particularly the outside quarter, are too high the top-line may rub the ankle
bone.

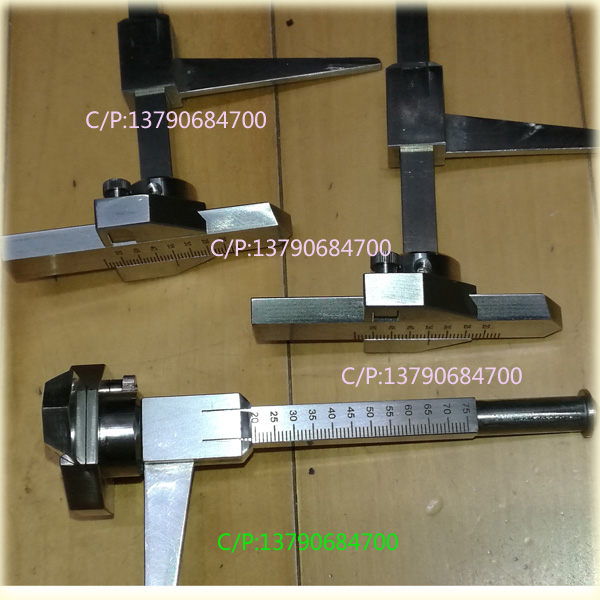

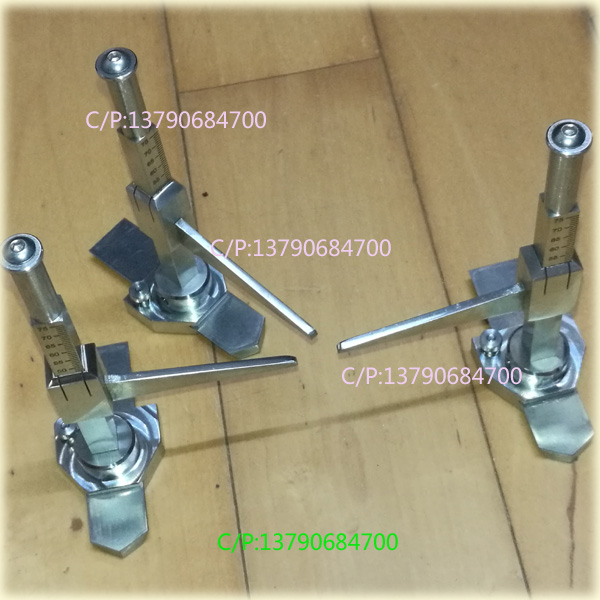

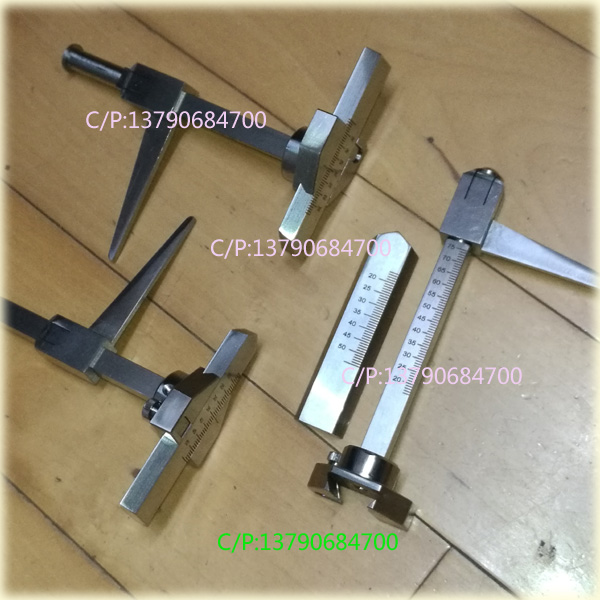

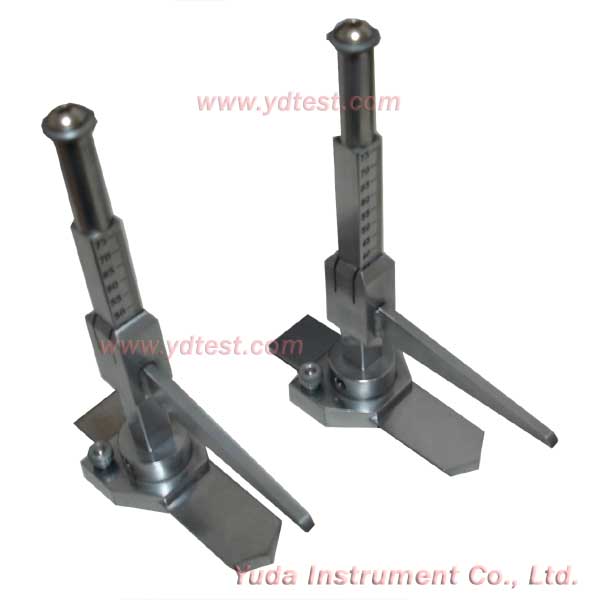

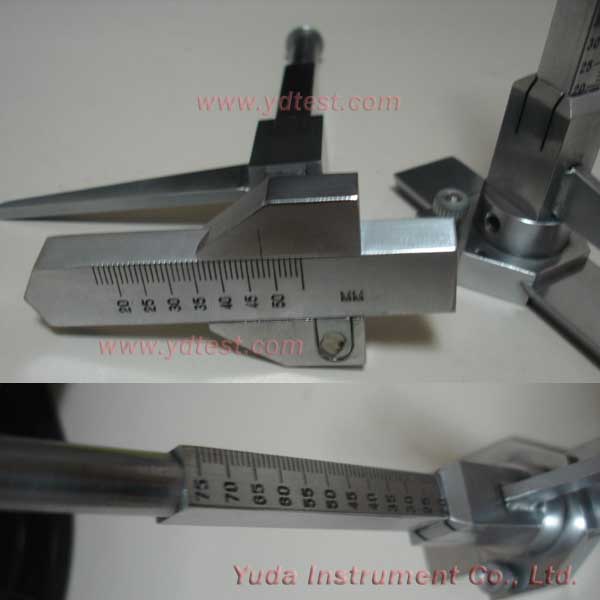

The YD-206 is an instrument designed to measure the height of the top-line of the shoe above the insole surface at the
seat to check that footwear is satisfactory. It can be used for all sizes of shoe and incorporates an adjustment which allows the
measuring positioning for quarter height to be varied correctly with shoe size. It can be easily changed to measure left and right shoes as required.

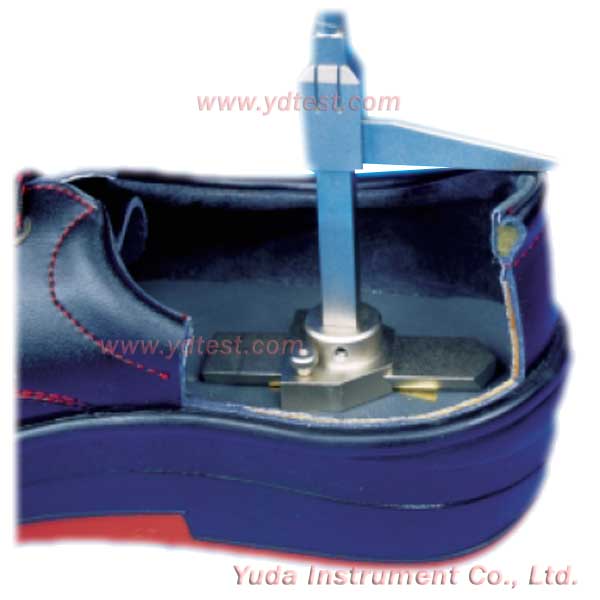

To carry out measurements the gauge is placed inside a shoe on the insole at the seat. It is a simple but accurate device
and is supplied with full instructions and tables giving measurement positions for adults’ as well as children’s shoes. It is
plated to prevent corrosion.
The YD-206 is compact and measures 80 x 40 x 135mm high.
